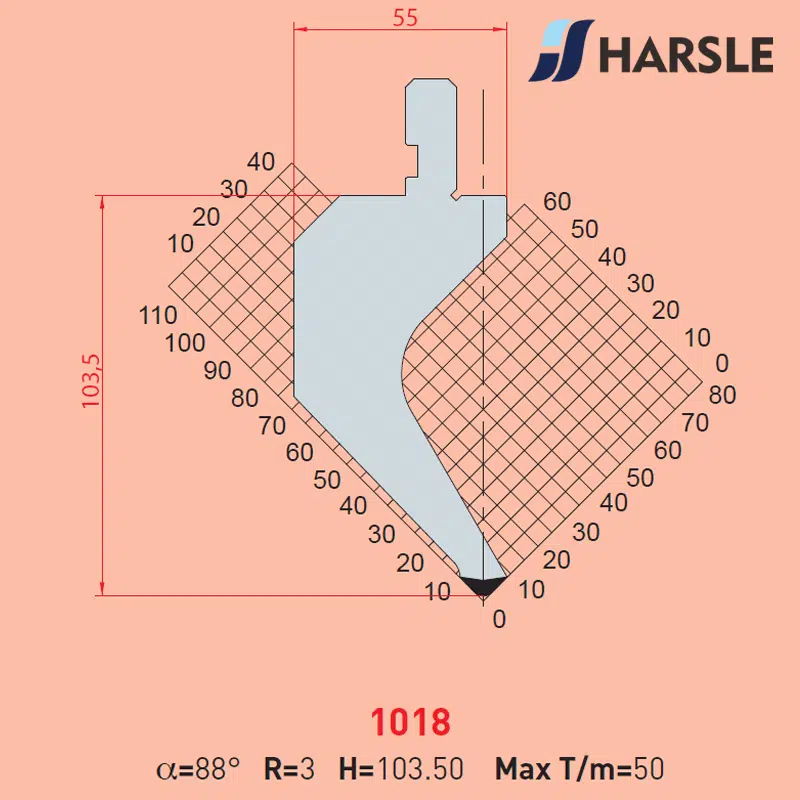

1018 AMADA-PROMECAM Gooseneck Punch

Brand

HARSLE

Tooling Type

Gooseneck Punch

Tooling System

AMADA-PROMECAM

Code

1018

Angle

88°

Radius

3

Height

104mm

Load

50T/Mt

Fast Delivery

Short delivery time and sometimes we have the toolings in stock.

Best Quality

Best warranty can make sure the high quality.

Description
Standard Lengths
HARSLE

Standard Lengths

HARSLE

How to calculate air bending force

lazy

F: bending force, N

Rm: tensile strength of material, N/mm²

T: bending sheet thickness, mm

V: lower die Vee opening, mm

L: bending sheet length, mm

lazy
HARSLE

The selection rule of lower die Vee opening

The lower die opening is the width of the lower die channel of the bending machine die, which is generally related to the material thickness. According to the data summarized by the market requirements, when the plate thickness range is within 0~3 mm, the lower die channel width V of the bending machine is equal to the plate thickness*6, for the precision bending, it can be narrowed to 4 times the plate thickness; when the thickness range is within 3~8mm, bending machine lower die channel width V is equal to the plate thickness*8; For plate thickness is over 10mm, the width of the V opening for the lower die is equal to the plate thickness*12.

Plate
thickness(mm)
0.5~2.53.0~8.09.0~10.0over 12.0
Notch
width(mm)
6*t8*t10*t12*t
HARSLE

Air bending force chart

lazy
