HARSLE

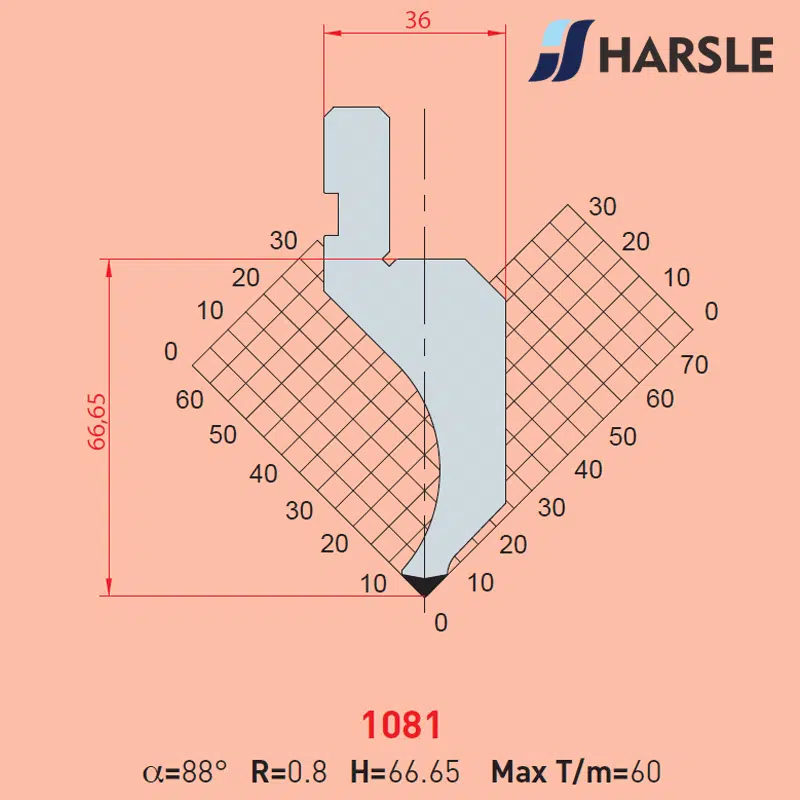

1081 AMADA-PROMECAM Gooseneck Punch
| Brand |
HARSLE |
|---|---|
| Tooling Type |
Gooseneck Punch |
| Tooling System |
AMADA-PROMECAM |
| Code |
1081 |
| Angle |
88° |
| Radius |
0.8 |
| Height |
67mm |
| Load |
60T/Mt |
Description
HARSLE
How to calculate air bending force
F: bending force, N
Rm: tensile strength of material, N/mm²
T: bending sheet thickness, mm
V: lower die Vee opening, mm
L: bending sheet length, mm
HARSLE
The selection rule of lower die Vee opening
The lower die opening is the width of the lower die channel of the bending machine die, which is generally related to the material thickness. According to the data summarized by the market requirements, when the plate thickness range is within 0~3 mm, the lower die channel width V of the bending machine is equal to the plate thickness*6, for the precision bending, it can be narrowed to 4 times the plate thickness; when the thickness range is within 3~8mm, bending machine lower die channel width V is equal to the plate thickness*8; For plate thickness is over 10mm, the width of the V opening for the lower die is equal to the plate thickness*12.
| Plate thickness(mm) | 0.5~2.5 | 3.0~8.0 | 9.0~10.0 | over 12.0 |
| Notch width(mm) | 6*t | 8*t | 10*t | 12*t |
HARSLE
Air bending force chart
Who we are
HARSLE is a company situated in China, with a long-standing experience in the production of punches and dies, the core elements of sheet press brakes and bending technology. HARSLE production includes a wide range of accessories. All our tools are made of special carbon steel, induction hardened to 50-60Hrc on working parts and ground. The grinding process, which is considered essential to reach best results, has been rationalized by HARSLE in its every detail, from the wheels to the working speed, piece placements and finally the finishing process. A large range of working machines which also include eight models of grinding machines, has enabled HARSLE to reach a high level of production, ensuring excellent quality/price ratio.
HARSLE
Our philosophy
HARSLE’s aim is complete customer satisfaction by proposing the quality of its product and an efficient service. We are able to offer specific solutions for every kind of tool model in standard modular length. We also have a well-stocked warehouse to satisfy customer requests rapidly.
HARSLE
Competences
Precious of highly qualified professional staff further increases HARSLE’s reliability, which is considered by many customers, a trustworthy partner and a landmark for every kind of bending solution.
HARSLE
Advantages
As a producer of press brake tools and special tools for almost 30 years we stand for precision, high quality, modern technology and first-class know-how. Working in close cooperation with you, we produce at our modern 3000m² facility high quality press brake tools for fast and economical work processes. Many items can be supplied immediately from our massive storage facility.
HARSLE was founded in 1997, We are well known beyond Chinese borders and very proud, to be your experienced and competent partner for press brake tools. We constantly set new milestones to maintain our industry leading position and provide sustainable growth in our company, our products and our services.
●Office hours: From Monday to Friday from 7:30am to 6:00pm
●Delivery time: standard tools will be in stock, custom tools will be within 20 working days
●Shipping: small quantity will be by courier, big quantity will be by sea transportation
●Package: Ecologically sensitive and safe with self-recycled packing material
About HARSLE
Why Choose HARSLE?
HARSLE is a press brake tooling manufacturer in China for many years, our productions have been sold to over 100 countries in the world!
